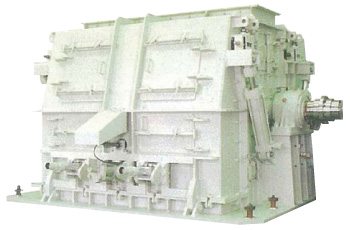

HAMMER CRUSHER
FEATURES
- Easy Adjustment of Product Size
- Product size can be adjusted easily by;
- Changing rotor speed.
- Changing gap setting between hammer and grinding path liner.
- Using always new face of hammer by reversible rotor．
- High Grinding Capability
- Desired product can be obtained because;
- Coarse particle in the product is reduced by many numbers of grinding path liners.
- Fine particle in the product is reduced by low fan effect of zigzag hammer alignment．
- Easy Maintenance
- Multi-sectional welded housing allows easy access to every partition and quick exchange of wear parts.
- Hammners are always operated with sharp edges. And high utilization of hammer head with continuous operａtion is achieved by reversible rotation．
- No cleaning in the grinding chamber is required because hammer head with zigzag hammer alignment cleans the grinding chamber automatically.
- Stable Operation
- Low fan effect of zigzag hammer alignment achieves stable operation with;
- Low noise
- Low vibration
- Low de-dusting volume
SPECIFICATIONS
| MODEL | CAPACITY(mt/h) | FEED OPENING (mm) |
HAMMER EDGE DIA. (Nominal. mm) |
ROTOR WIDTH (mm) |
MOTOR (kW) |
|---|---|---|---|---|---|
| KHC-1010 | 35～55 | 350×1200 | 1000 | 1000 | 75～130 |
| KHC-1212 | 55～95 | 400×1400 | 1200 | 1200 | 130～220 |
| KHC-1414 | 95～145 | 450×1600 | 1400 | 1400 | 220～330 |
| KHC-1614 | 110～165 | 600×1400 | 1600 | 1400 | 250～400 |
| KHC-1618 | 140～215 | 600×1800 | 1600 | 1800 | 300～500 |
| KHC-1820 | 200～300 | 650×2000 | 1800 | 2000 | 450～650 |
| KHC-1822 | 270～420 | 650×2200 | 1800 | 2200 | 600～950 |
| KHC-1825 | 350～500 | 650×2500 | 1800 | 2500 | 700～1100 |
| KHC-2030 | 450～700 | 700×3000 | 2000 | 3000 | 800～1500 |
| KHC-2220 | 350～500 | 730×2000 | 2200 | 2000 | 700～1100 |
| KHC-2225 | 450～700 | 730×2500 | 2200 | 2500 | 800～1500 |
NOTE）
Capacity and motor kW given above are approximates as substantial variations occur according to raw material, feeding and crushing sizes and rotor peripheral velocity.
