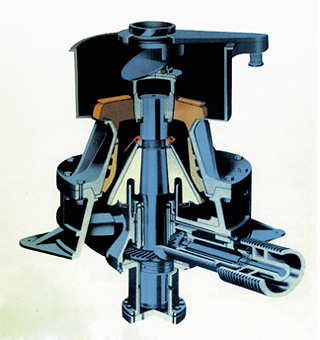

Autofine Crusher
FEATURES
- Layerd Particle Crushing Technology
- ・Layered Particle Crushing is achieved with the use of specially designed crushing chambers that combine a suitable eccentricity, controlled outlet clearance and automatically controlled choke feed.
- Automatic Operation Sytem
- ・AUTOFINE is equipped with an automatic operation system which controls operating conditions to maintain layared particle crushing at maximum performance.
・A rotary feed distributor is eqipped to feed materiale evenly into the crushing chamber. - Highly Evaluated Hydraulic Mechanism
- ・AUTOFINE is equipped with a hydraulic mechanism,whose reputation is well-establihed among ,many clients.
SPECIFICATIONS
| NOMINAL SIZE |
ECCENTRIC THROW(mm) (A:Small B:Large) |
MOTOR OUTPUT (kW) |
MAX. FEED SIZE (mm) |
Throw Crushing Capacity(mt/h) | 5-0mm Production Capacity(mt/h) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MAX.FEED SIZE(mm) | MAX.FEED SIZE(mm) | ||||||||||
| 100～0 | 80～0 | 60～0 | 40～0 | 100～0 | 80～0 | 60～0 | 40～0 | ||||
| 30NAF | 25 | 95 | 40×60×80 | 85 | 90 | 30 | 40 | ||||
| 36NAF | A:25 | 110～130 | 50×70×110 | *125 | *125 | 125 | 130 | *30 | *35 | 40 | *50 |
| B:29 | 130 | 50×70×110 | *150 | *150 | 150 | 150 | *35 | *40 | 45 | 55 | |
| 45NAF | A:29 | 190～220 | 75×105×150 | 200 | 200 | 200 | 50 | 55 | 65 | ||
| B:35 | 220 | 75×105×150 | 250 | 250 | 255 | 55 | 60 | 70 | |||
| 60NAF | A:32 | 260～300 | 80×110×160 | 470 | 470 | 70 | 80 | ||||
| B:38 | 300 | 80×110×160 | 575 | 580 | 80 | 85 | |||||
NOTE）
1.Capacity shown is based on continuous feed of typical sand stone or similar with a bulk density of 1.6 metric ton per cubic meter, minimum clay and moisture.
2.Actual capacity may vary due to charactetistics of feed material and operating condition.
3.A-type is equipped with H.control system.
4.In case of 36 NAF,if feed material should be 80mm over,select S-36NAF(*marked list).
