Crushing/Grinding

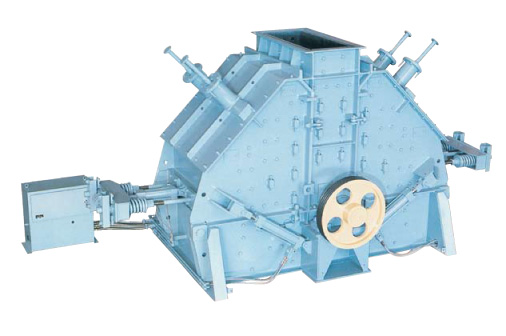

SUPER IMPELLER
FEATURES
HM TYPE
- Excellent Product Shape
- Excellent grain forms are achieved by the adoption of a special grinding path system and improvements to impact and grinding operations. In addition the machine is capable of producing reduced product sizes as a result of the high redustion ratio.
- Easy Maintenance
- The boltless system used for fixing the striking blades and grinding path liners allows for quick and easy replacement.Daily maintenance and control is made easy by the limited sizes of liners used in the machine.
- Easy Adjustment of the Discharge Opening
- The variable adjustment of the discharge opening and the grinding path are made easy by the use of a hydraulic cylinder.
KIS TYPE
- Large crushing chamber increases capacity by approx. 20％.
- New striking blades provide:
lump-size crushing up to 200mm
easy maintenance thanks to new boltless system. - Less liners for easier maintenance.
- Better product shape with lower power consumption due to ideal impact crushing.
MODEL AND CAPACITY
| MODEL | MOTOR (kW×Pole) |
CAPACITY(mt/h) | |||
|---|---|---|---|---|---|
| PERIPHERAL VELOCITY(m.p.s) | |||||
| 21 | 25 | 30 | 36 | ||
| KIS1010HM | 55～75×6 | 52～56 | 48～54 | 43～48 | |
| KIS1310HM | 75～90×6or8 | 92～102 | 88～97 | 78～87 | |
| KIS1315HM | 110～130×6or8 | 138～152 | 130～145 | 117～129 | |
| KIS1615HM | 150～170×8 | 196～215 | 185～204 | 165～185 | |
| KIS1620HM | 190～220×8 | 262～288 | 246～272 | 219～243 | |
| KIS1005H | 30～37×6 | 35～40 | 32～35 | 28～32 | 25～29 |
| KIS1010H | 55～75×6 | 67～73 | 63～70 | 56～63 | 50～57 |
| KIS1310H | 75～90×6or8 | 120～132 | 114～126 | 102～113 | 92～100 |
| KIS1315H | 110～130×6or8 | 180～198 | 170～188 | 152～168 | 134～150 |
| KIS1615H | 150～170×8 | 255～280 | 240～265 | 215～240 | 190～220 |
| KIS1620H | 190～220×8 | 340～375 | 320～353 | 285～316 | 255～285 |
- Note1. Capacity vary with the type and feed size of the material.
- Note2. The table shown above represents the case whwre stones similar to andesite, which are less than 100 mm, in size are fed into the crusher.
- Note3. Capacity vary according to feed rocks.
- Note4. The above capacities are based on normal andesite of - 100 mm feed size.
