Powder Processing
JEDI
FEATURES
- Surprising Milling Property
- Integrai And High Efficient Classifier
- Suitable For High Abrasive Material
- No Contamination
- Low Noise Type
MODEL AND CAPACITY
| MODEL | EJM00 | EJM10 | EJM20 | EJM30 | EJM40 | EJM50 | EJM30 |
|---|---|---|---|---|---|---|---|
| Air Volume for Milling (Nm³/h) |
200 | 500 | 1,000 | 1,500 | 2,000 | 3,000 | 4,000 |
| Compressed Air Pressure (Mpa) |
0.5～0.8 | 0.5～0.8 | 0.5～0.8 | 0.5～0.8 | 0.5～0.8 | 0.5～0.8 | 0.5～0.8 |
| Seal Air Volume (Nm3/h) |
60 | 75 | 110 | 130 | 150 | 190 | 215 |
| Power for Classifer (kW) |
2.2 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 |
| Speed for Classifier (rpm) |
400～4,000 | 300～3,000 | 250～2,500 | 220～2,200 | 200～2,000 | 160～1,600 | 140～1,400 |

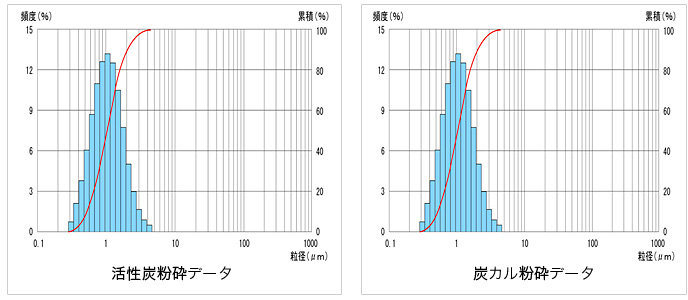

| Particle Size （d97）(μm) |
2.1～21 | 2.1～21 | 2.1～21 | 2.1～21 | 2.2～22 | 2.5～25 | 2.6～26 |
| Ratio | 0.2 | 0.5 | 1 | 1.5 | 2 | 3 | 4 |
