Powder Processing

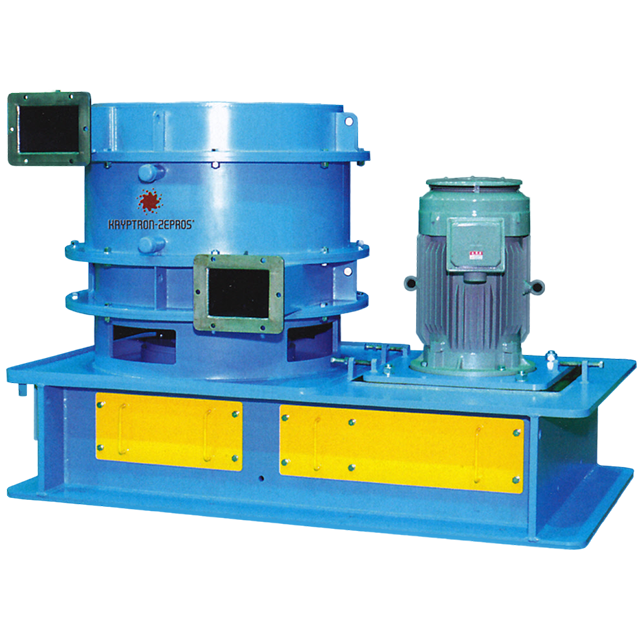

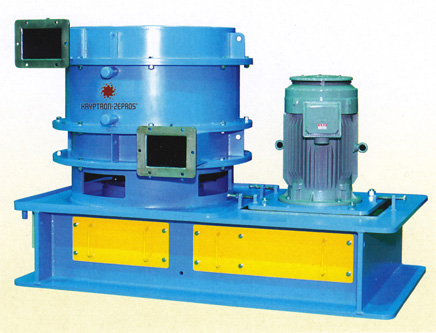

KRYPTRON Zepros
FEATURES
- Excellent pulverizing performance
- Available complete with the pulverizing performance of Kryptron, coupled with an improved pulverizing performance in narrower ranges.
- High economic efficiency
- Operable with a low power consumption comparable to that of Kryptron. Large auxiliary equipment unnecessary, thanks to low pressure loss.
- Compatible with relatively large size raw material grains
- A combination of a special shaped rotor and stator allows loading and pulverization of approx. up to 40 × 40 × 5 mm material grains.
- Easy disassembly and cleaning
- A vertical configuration with a one-end supported rotor bearing provides easy rotor disassembly and internal cleanability.
MODEL AND CAPACITY
| Model | KCM100 | KCM200 | KCM400 | KCM700 | |
|---|---|---|---|---|---|
| Max. speed(rpm) | 6400 | 4200 | 3000 | 2400 | |
| Standard motor power (kW) |
11 | 15 | 22 | 30 | |
| Relative capacity ratio | 1 | 1.5 | 2～4 | 3～7 | |
| External dimensions (mm) |
A | 1050 | 1250 | 1700 | 1900 |
| B | 450 | 600 | 900 | 1100 | |
| C | 900 | 1050 | 1150 | 1350 | |
Wear resistant (super-hard alloy/ceramic), stainless steel, or cooling-jacketless versions are also available at request.
